Investment casting, known as "lost wax casting", is an old method that has seen lots of change in the course of history to satisfy today's manufacturing needs. This process is known for its ability to create complex, precise, and accurate quality parts. Investment casting fits any manufacturer's needs where extremely complex lightweight parts are demanded across a range of industries from air and automotive to medical and military. In this step-by-step tutorial we will go through the entire investment casting process, whilst focusing particularly on how it is adapting to modern manufacturing requirements including the growing demand for lightweight components.
Custom investment casting manufacturers fulfill a vital role as the market demand for quality lightweight precision components keep changing. Stepwise, the entire investment casting process caters to a complete understanding of every working phase that further enhances modern technological applications.
1. Pattern Creation: The Foundation of Investment Casting
Investment casting begins by making a pattern that forms the blueprint for the final cast part. Traditionally, these were made from wax, but in modern settings, patterns can be fabricated from any one of a number of materials-plastics or metals-depending upon the particular requirements of the custom investment castings being produced.
The pattern is made to be precisely the dimensions of the part being cast. If it is a custom investment casting, the pattern is often created using advanced computer-aided design software. This technology ensures that the casting is highly accurate and detailed. Sometimes, 3D printing is utilized for such patterns, allowing even greater precision and flexibility in terms of shape and complexity.
Such is the creation of a pattern, which, besides being able to realize intricate geometries, has to take into account material properties in industries that demand lightweight components-for example, in aerospace. Because of this reason, the design of the pattern often goes hand in hand with consultations with the material scientists, who ensure the end product satisfies structural and weight requirements.
2. Shell Building: Creating the Mold
First, the pattern is coated with a ceramic shell after it has been prepared. This is achieved by dipping the pattern into a slurry mixture, followed by sprinkling with fine sand particles until the layers of the shell are achieved in repetition many times. Depending on the part's geometry and size to be cast, more layers could be necessary.
The shell must then be dried and hardened in order to become a strong mold for withstanding such high temperatures of the molten metal. Much significance is attached to accuracy and surface finish with respect to the building of the shell in custom investment casting. Whatever is wrong with the mold will be repeated in the final casting; thus, precision at this stage is vital.
The possibility of great detail in investment casting molds makes the process ideal for constructing lightweight, performance-critical elements. For example, in aerospace, even a single specific component such as turbine blades may have considerably complex geometry because of the particular flow patterns you may want upon airflow across blades; this could obtain from the shell process for replication into finished pieces.
3. Wax Removal: Lost Wax Step
Once the ceramic shell has finally dried and hardened, the next step is to remove the wax pattern inside the mold. It is usually done by heating the mold to such a temperature that the wax melts and drains out; this is called the "lost wax" process because the pattern is destroyed in this stage.
The process of removing wax is very critical in ensuring that the mold is clean and ready to take the molten metal. This allows the making of investment castings with very fine details and smooth surfaces. In modern applications, advanced techniques such as microwave heating or autoclaving may be used for more efficient removal of wax.
It is at this step also where casting of lightweight parts is a possibility. The employment of lightweight wax materials and hollow pattern design or even cores minimize the weight in the final component.
4. Mold Firing: Strengthening the Mold
When all the wax has been removed, the mold is fired in a kiln or furnace at very high temperature. This step does two things: it hardens the ceramic shell and removes any remaining waxy residue. The firing also ensures that the mold is robust enough to tolerate the heat of the molten metal in casting.
When it comes to custom investment castings, the firing of a mold is a sensitive process. Any defect or irregularity in firing can result in certain defects in the final casting. Due to this fact, the use of advanced temperature control systems to ensure uniform heating and cooling throughout the mold is considered by some manufacturers.
These days, modern casting methods require most of the molds, especially within the manufacture of lightweight components, to bear up under high temperatures without deforming or cracking. Advanced ceramics and refractory materials are widely used in mold making to be able to stand the heat of casting without deformation or cracking.
5. Metal Melting: Material of Choice
Once the mold is ready, the next step is to melt the metal that will form the casting. The type of metal used is very much application-specific. Among the most common metals used in investment casting are aluminum, stainless steel, titanium, and cobalt-based alloys. The choice of metal also dictates the temperature and equipment required for melting.
Material selection becomes even more critical for custom investment castings. In industries like aerospace, where lightweight yet durable components are needed, materials with specific properties are chosen. For example, titanium alloys are commonly used for their strength-to-weight ratio, corrosion resistance, and high-temperature stability.
These new technologies of VIM and EBM allow modern methods to produce very specialized alloys and metals with qualities unmatched by other means. It could be said that these new methods will finally provide the possibility to create high-performance and lightweight parts tailored for very specific needs in the medical or automotive industries.
6. Pouring the Metal: Precision in Action

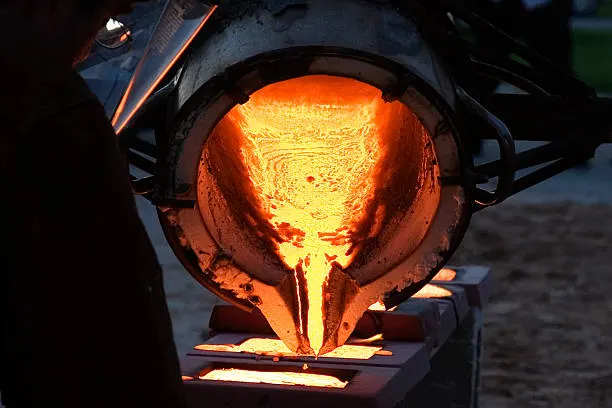

The molten metal is poured into the prepared mold after it reaches the proper temperature. This process has to be done with accuracy to avoid defects such as air bubbles, cracks, or inclusions. Sometimes molds are preheated to ensure a uniform pouring temperature and prevent thermal shock.
In modern custom investment casting, especially for complicated or light parts, pouring is automated or done under very close control to avoid human error and to be sure metal flows into all areas of the mold without turbulence. In light-weight parts, control of pouring speed and metal flow is quite important in preserving the integrity of thin sections and fine features.
Gravity pouring, centrifugal casting, and pressure casting are some of the advanced technologies, in which the exact filling of mold cavities by molten metal is ensured. In high-volume casting, automated pouring systems with online monitoring and feedback loops are more often than not operated.
7. Cooling: Giving the Product its Final Form
Once the mold is filled, the casting is to be cooled and solidified. Cooling rates will greatly affect the properties of the material, in respect to hardness, strength, and surface finish. This is the most common rate control so that metals may solidify without shrinkage or warping.
This is particularly true with custom investment castings for lightweight component applications in aerospace, automotive, and similar fields where close attention to cooling is required. The material has to cool very slowly and uniformly to prevent the onset of internal stresses that can result in either cracking or dimensional inaccuracies.
Advanced cooling techniques include controlled cooling chambers and high-pressure cooling, amongst others, used to regulate the rate of cooling for an optimum end product. These methods become particularly important in parts featuring geometries with intricate details and thin walls, common in lightweight components.
8. Shell Removal: Finalizing the Shape
Once the casting has cooled and solidified, the next step is to remove the ceramic shell. This generally involves mechanically or manually breaking away the shell. There are instances where the mold material is removed by high-pressure water jets.
Especially in the instance of custom investment castings that include detailed features or which fragile in nature should be done with great care lest it should give damage to it. After knocking off the shell, further cleaning will be done as per requirement which includes sand-blasting, acid washing by other methods just to remove adhering shells remain in the Castings. It comes in this stage as a raw casting; maybe without imperfections, yet mostly requiring further processing in order to be in a shape that can be used.
9. Finishing and Inspection: Quality Assurance
The cast part, after removal of the shell, undergoes finishing processes like grinding, polishing, or machining to get the final dimensions and surface finish. This may involve more sophisticated techniques in custom investment castings, including precision grinding, laser cutting, or EDM, especially for parts that require tight tolerances and high-quality finishes.
This stage also involves the quality control of inspection. Advanced NDT methods such as X-ray, ultrasonic testing, and dye penetrant inspection could be employed internal and external detection of defects is done. The parts are also under dimensional inspections that they meet an exact specification.
Additional testing in the cases of lightweight components, such as in aerospace or automotive industries, on such properties as tensile strength, fatigue, and corrosion resistance, may be carried out to ensure the quality of the final product.
10. Final Application: Integration into End-Use Products
Once the castings have passed all quality control checks, they are now ready to enter the final product. Most of the castings, after being manufactured, also undergo other treatment processes, including heat treatment or surface coating, depending on their application in any particular industry. Custom investment castings are often designed to meet particular functional needs that may include heat resistance in aerospace applications or bio-compatibility for medical devices.
The investment casting process proves to be effective in industries that require lightweight components, producing parts combined with strength and durability in view of weight-saving attributes. On account of their continuous adaptation of this process and uses of modern technology, manufacturers go on meeting demanding requirements that are growing increasingly complex due to the industries of today.
Conclusion
Investment casting remains one of the most versatile and efficient ways to produce precision parts with geometrical complexities. In such industries where performance and weight are critical, it is indispensable because of its capability to produce quality custom investment castings. The combination of advanced materials, state-of-the-art technology, and refined process steps guarantees that investment casting can meet the increasing demand for lightweight, high-performance components.
The evolution of investment casting will continue as industries keep up the pressure for lighter and stronger materials. Understanding the steps involved in the process, and how modern adaptations are continually improving quality, allows manufacturers to unlock new possibilities in design and manufacturing.
